ENDURA® High-Performance Corrosion-Resistant 57-Inch (145-cm) Fan
Features
Fan Performance
- Chore-Time’s Energy-Efficient, Standard-Mount ENDURA® Fan could save 14% or more in energy costs compared to Chore-Time’s own great-performing 54-inch (137-cm) High-Capacity Fan, often while using the same number of fans!
- Motors are selected for each fan model to optimize its performance efficiency. Extensive motor testing is completed in our on-site wind tunnel under various operating conditions.
- All ENDURA® Fan components were designed by Chore-Time to maximize overall fan efficiency.
Shutter Performance
- Chore-Time’s HYFLO® Shutters do not suffer the typical 12-15% loss of efficiency and air speed typical of dirty louver-style shutters, so air speed is maintained to the end of the flock, when you need it most.
- HYFLO® Shutters improve fan performance by minimizing obstructions during fan operation. They deliver up to 10% more air than traditional shutters with 75% less opportunity for air to leak through.
Exceptional Materials
- Durable long glass fiber composite shroud and HYFLO® Shutter Doors contain 35% fiberglass for strength and to limit expansion and contraction.
- Galvanized, powder-coated fan drive, support structures and flush-mount box. Optional stainless steel fan blade and shaft.
Durability
- Extensive durability testing under both extreme high and extreme low temperatures.
- Automatic belt tensioner uses an idler arm and pulley to provide constant belt tension.
- Rugged air-handler bearings are shielded from dust and moisture, self-aligning, prelubricated and include a zerk fitting.
- Aerodynamic three-wing, heavy-duty fan blade.
Adaptability
- Can be installed 60 inches (152.4-cm) on center over 56.5-inch (143.5-cm) framed openings.
- For retrofit, will fit over openings for many 48- through 54-inch (122- through 137-cm) fans.
- Black HDPE (high-density polyethylene) cone aids in light control.
- Capable of variable speed operation with the use of a variable frequency drive.
Mounting Options

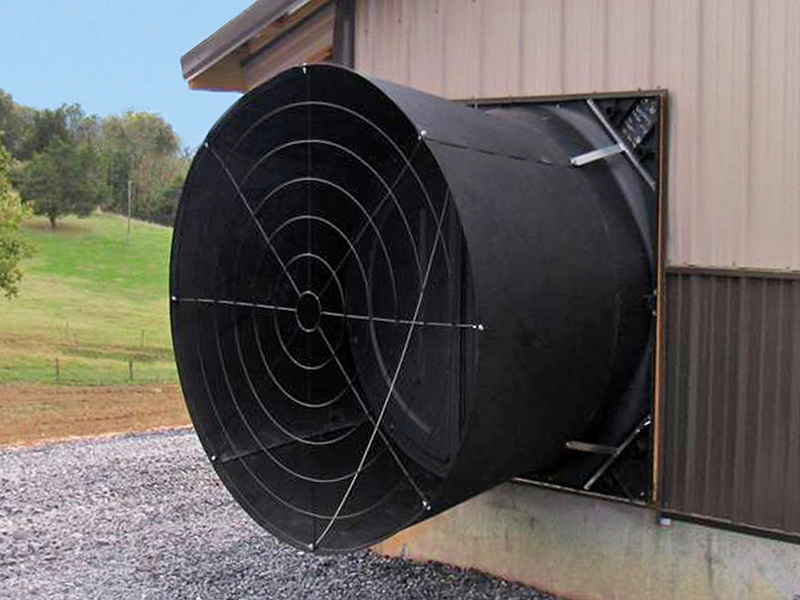

- The standard-mount model of Chore-Time’s ENDURA® Fan offers the best performance and easiest installation.

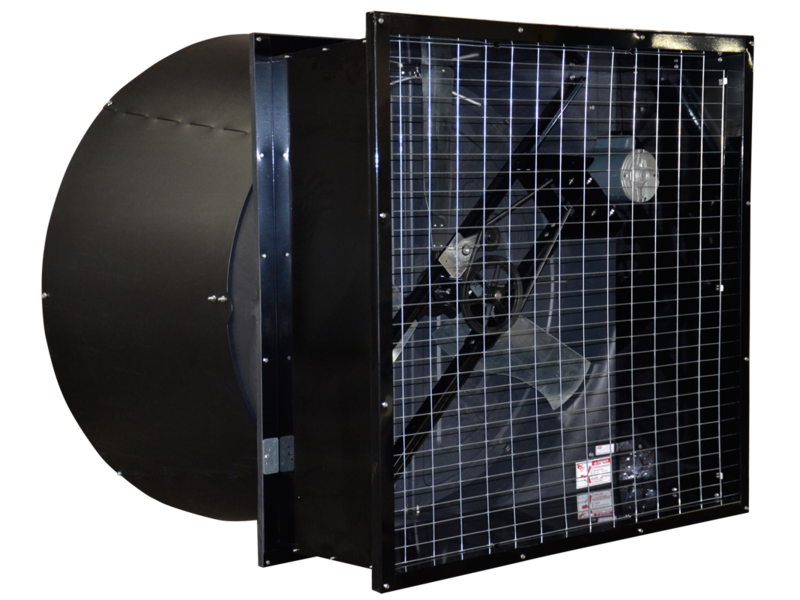

- Chore-Time’s flush-mount ENDURA® fan delivers high air flow and efficiency and also eliminates obstructions inside the poultry house.

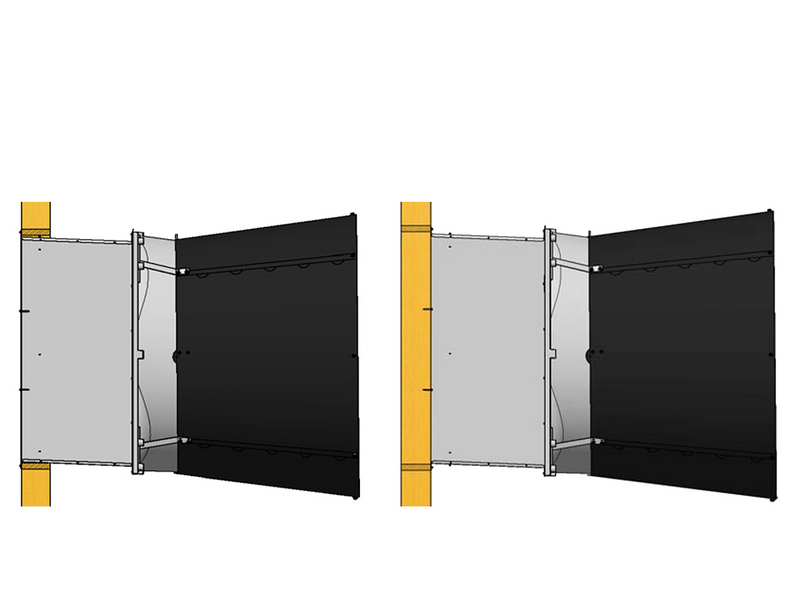

- Two mounting options for the flush-mount model are possible – through the wall or over the wall.
Photos
Videos

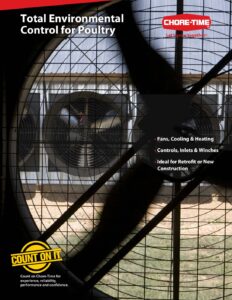

Total Environmental Control
(CT-2251/202412)
ENDURA® Fan
(CT-2536-201905) USA

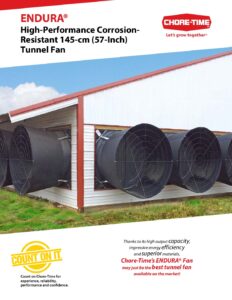

ENDURA® Fan
(CT-2536-201905-Metric)

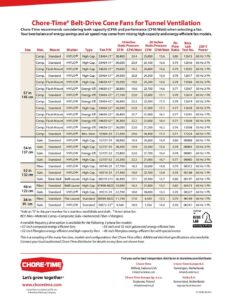

CHORE-TIME® Fan Guide
(CT-2298/202412)

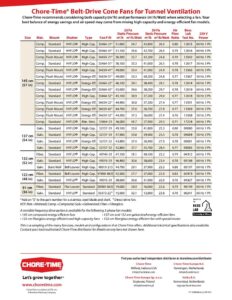

Chore-Time® Metric Fan Guide
(CT-2298-Metric/202412)
MV2494D 57-Inch Flush Mount Direct Drive ENDURA® Fan
Aug 2024

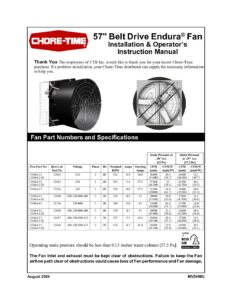

MV2406U 57-Inch Belt Drive ENDURA® Fan Install & Operate
Aug 2024

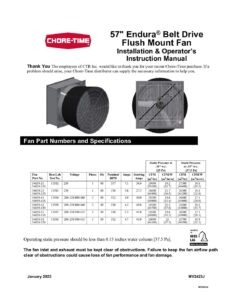

MV2423J 57-Inch ENDURA® Belt Drive Flush Mount Fan Install & Operate
Jan 2023
MV2530 Keld Variable Speed Drive Quick Guide
May 2024

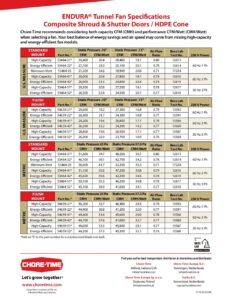

Chore-Time ENDURA® Fan Specifications
Chore-Time® Belt-Drive Cone Fans for Tunnel Ventilation Specifications
Chore-Time® Metric Belt-Drive Cone Fans for Tunnel Ventilation Specifications
